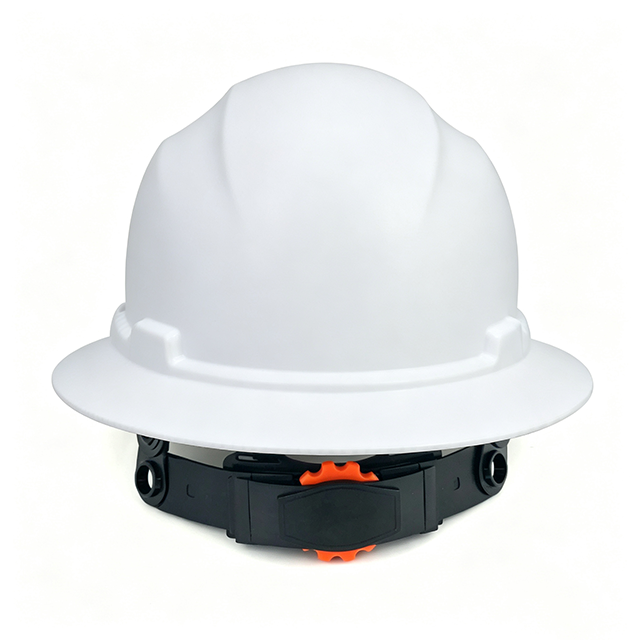

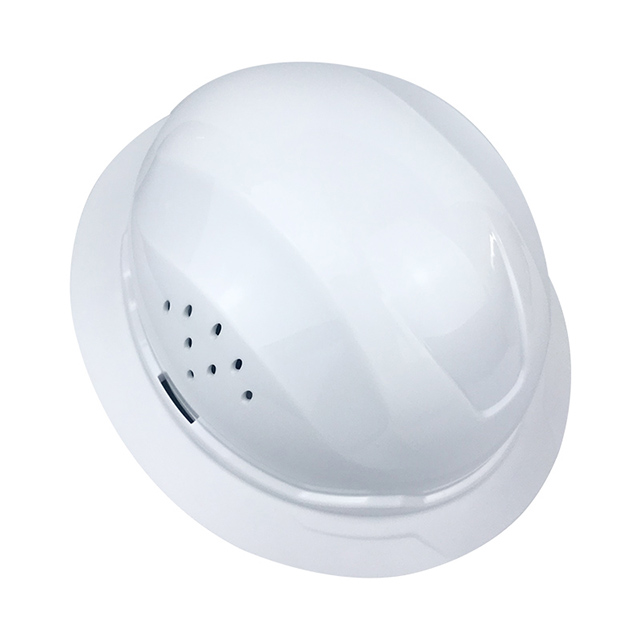

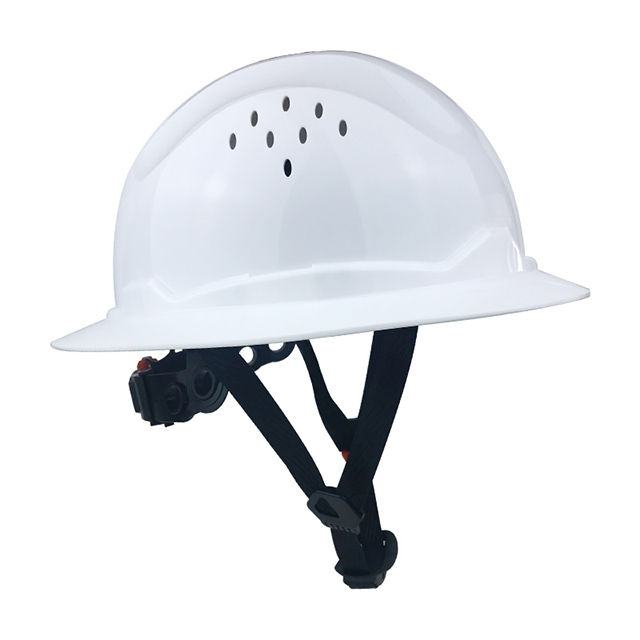

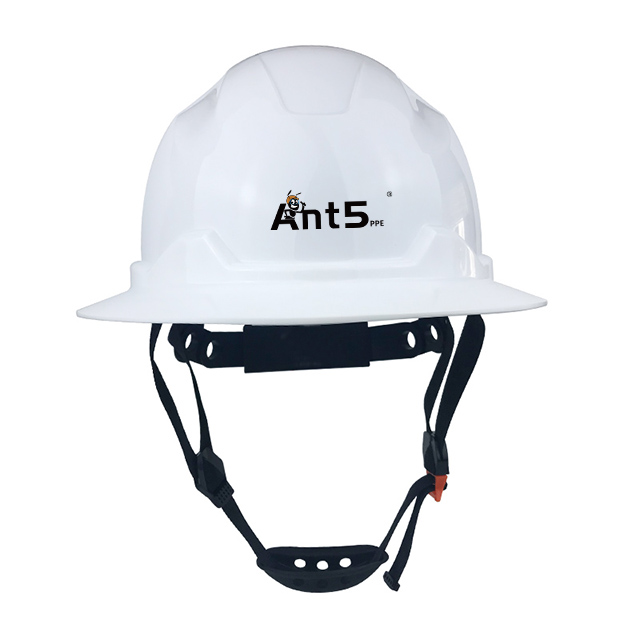

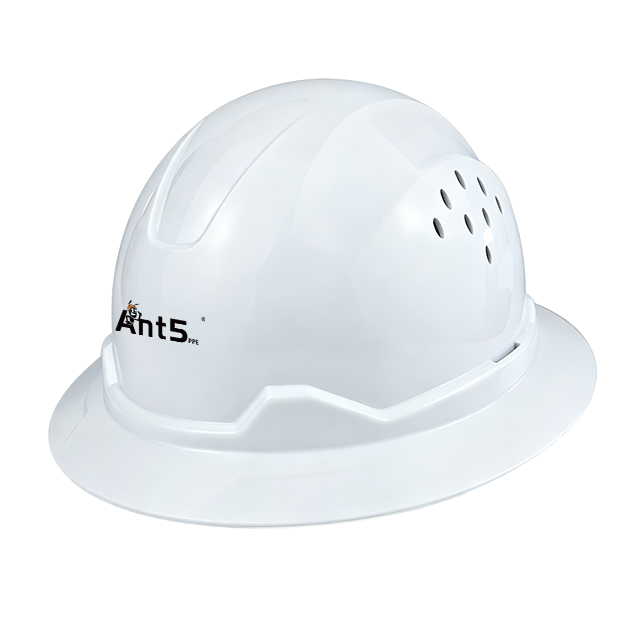

Type I Class C Full Brim Hard Hat SNHL9

ANSI Type I Full Brim Hard Hat for Outdoor Work

The SNHL9 is an ANSI Type I full brim hard hat designed for construction, utility inspection, outdoor engineering, field surveying, infrastructure work, and other industrial applications where protection against top impact hazards is required. Its wide full brim provides extended coverage around the head while helping shield the face, neck, and ears from sunlight and rain during outdoor work.

The helmet features a durable HDPE shell, adjustable ventilation, a 6-point suspension system, ratchet adjustment, and an adjustable chin strap. The head size is adjustable from 52–63 cm, while the open suspension design promotes airflow inside the helmet for improved wearing comfort.

Designed to meet ANSI Z89.1 Type I, Class C requirements, the SNHL9 combines top-impact protection with full brim coverage, adjustable ventilation, a stable suspension system, and compatibility with selected helmet-mounted PPE accessories.

Key Features

• ANSI Type I Protection – Designed for top-impact protection in general industrial applications.

• Full Brim Design – Wide brim provides broader coverage from sunlight, rain, dust, and flying debris.

• Adjustable Ventilation – Open or close the top vents according to working conditions.

• HDPE Shell – Lightweight and durable shell designed for regular industrial use.

• 6-Point Suspension System – Helps distribute impact forces and maintain a stable fit.

• 52–63 cm Adjustable Fit – Accommodates a broad range of adult head sizes.

• Ratchet Adjustment – Allows quick and precise fit adjustment, including while wearing gloves.

• Adjustable Chin Strap – Helps keep the helmet securely positioned during work.

• Washable Sweatband – Breathable foam sweatband helps manage perspiration and can be removed for cleaning.

• Rotatable Rear Neck Pad – Helps improve fit and accommodate headwear or longer hairstyles.

• Side Accessory Slots – Compatible with suitable ear muffs and other helmet-mounted PPE accessories.

• Customizable for OEM Orders – Custom logos and colors are available.

• No MOQ – Suitable for sample orders, bulk purchasing, and OEM projects.

Why Choose the SNHL9 Full Brim Hard Hat?

Full Brim Coverage for Outdoor Work

The SNHL9 features a wide full brim designed to provide broader coverage than a standard front-brim hard hat. The extended brim helps shade the face, neck, and ears from direct sunlight while helping guide rainwater away from the head and neck.

This design makes the SNHL9 suitable for outdoor construction, engineering, surveying, infrastructure maintenance, and other field applications where workers are exposed to sun and changing weather conditions.

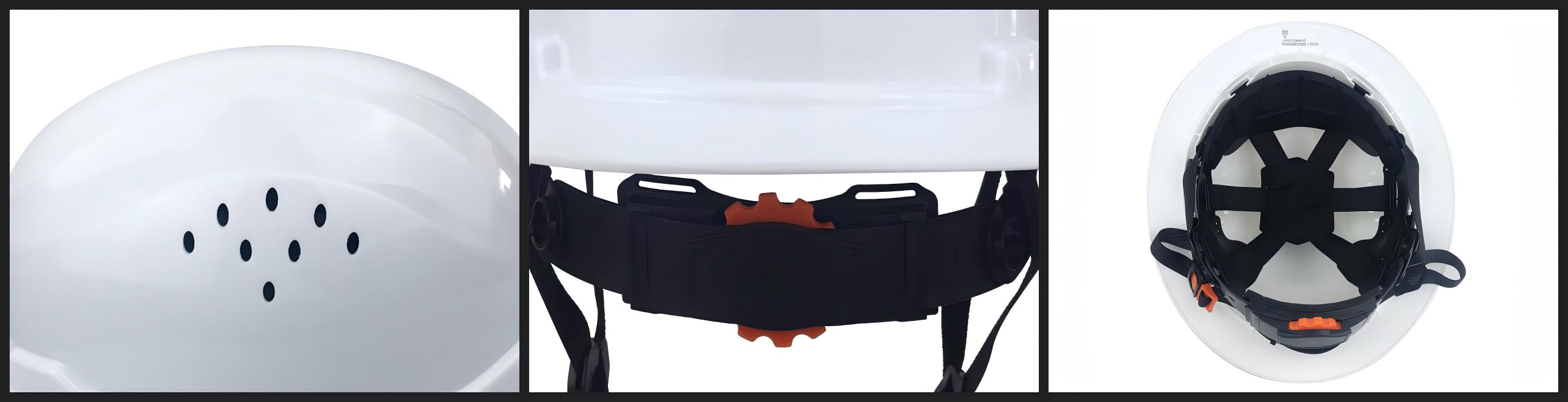

Adjustable Ventilation for Better Airflow

Multiple ventilation openings are integrated into the top of the helmet and can be opened or closed according to working conditions.

When open, the vents promote airflow through the helmet and help reduce heat and stuffiness during warm-weather work. The adjustable design allows workers to control airflow according to weather and jobsite conditions.

Durable and Lightweight HDPE Shell

The SNHL9 uses an HDPE (high-density polyethylene) shell designed to provide a durable protective structure while maintaining a lightweight profile.

The integrated shell is suitable for regular use across construction, engineering, inspection, surveying, and other industrial work environments.

6-Point Suspension for a Stable Fit

The SNHL9 uses an open 6-point suspension system to connect the shell securely to the wearer's head.

The suspension helps distribute forces through the suspension structure while maintaining a stable fit. Its open-frame design also allows air to circulate inside the helmet.

The suspension accommodates head sizes from 52–63 cm.

Easy Ratchet Adjustment

A large rear ratchet knob allows workers to fine-tune the helmet fit quickly and smoothly.

The adjustment system can be operated with one hand and is designed to remain practical while wearing work gloves, making it suitable for active jobsites and field operations.

Comfort Features for Extended Wear

The SNHL9 combines a flexible 6-point suspension, breathable washable sweatband, top cushioning, and a rotatable rear neck pad to support comfortable extended wear.

The rear neck pad can rotate to provide additional clearance and accommodate headwear or longer hairstyles, helping reduce pressure around the back of the head.

Side Accessory Compatibility

The SNHL9 has accessory slots on both sides of the helmet for compatible PPE accessories.

The side slots can be used with suitable ear muffs and other compatible helmet-mounted PPE accessories, allowing the helmet to be configured according to jobsite requirements.

Note: The SNHL9 does not include front headlamp clips.

SNHL9 Full Brim Hard Hat Specifications

Purchasing & OEM Information

The SNHL9 is available for direct sourcing, bulk purchasing, OEM projects, and private-label safety equipment programs. No MOQ is required, making this Type I full brim hard hat suitable for both smaller orders and larger procurement programs.

Custom logo printing and colors can be arranged according to project requirements. OEM packaging is also available for qualifying orders.

Type I Head Protection for General Industrial Work

The SNHL9 is designed to meet ANSI Z89.1 Type I requirements for workplaces where protection against top impact hazards is required.

Type I head protection is intended for work environments where the primary head-impact hazard comes from objects or materials striking the top of the helmet.

This Type 1 hard hat combines top-impact protection with a full brim, adjustable ventilation, HDPE shell, and 6-point suspension, providing a practical head protection solution for construction, utility inspection, field surveying, outdoor engineering, and other general industrial applications.

Helmet selection should always be based on the specific hazards and PPE requirements of the workplace.

Applications for Type I Full Brim Hard Hats

The SNHL9 is designed for outdoor and industrial applications where Type I head protection, full brim coverage, and Class C classification are appropriate.

Construction

Suitable for general construction, building projects, site maintenance, renovation, and other jobs where workers may be exposed to top impact hazards, sunlight, rain, dust, and flying debris.

Utility Inspection

Suitable for general utility inspection and field operations where Type I Class C head protection is appropriate.

For work involving electrical hazards, users should select head protection with the electrical protection classification required by the applicable safety standard. Class C head protection is not intended to provide electrical insulation.

Outdoor Engineering

The combination of full brim coverage, adjustable ventilation, and Type I head protection makes the SNHL9 suitable for outdoor engineering projects and field operations in changing weather conditions.

Field Surveying

The full brim provides broader weather coverage for surveying teams working outdoors, while the adjustable ventilation system helps promote airflow during extended field work.

Infrastructure Work

The SNHL9 can be used for infrastructure construction, maintenance, inspection, and other outdoor industrial projects where the required PPE specification calls for Type I Class C head protection.

Safety Standard & Certification

The SNHL9 is designed to meet ANSI Z89.1 Type I, Class C requirements.

Type I provides protection against top impact hazards, while Class C is intended for general industrial applications and does not provide electrical insulation.

The SNHL9 is a vented Class C full brim hard hat with adjustable ventilation for airflow control and wearer comfort.

The helmet should always be selected and used according to applicable workplace hazards, PPE requirements, and manufacturer's instructions.

Frequently Asked Questions About Type I Full Brim Hard Hats

What is a Type 1 hard hat?

A Type 1 hard hat is designed primarily to provide protection against top impact hazards. It is suitable for workplaces where falling or descending objects are the primary head-impact concern. The SNHL9 is designed to meet ANSI Type I requirements for general industrial applications.

Are Type 1 and Type I hard hats the same?

Yes. Type 1 and Type I refer to the same ANSI head protection classification. Type I is the formal designation commonly used in ANSI-related product specifications.

What are the benefits of a full brim hard hat?

A full brim hard hat provides extended coverage around the helmet and helps shield the face, neck, and ears from sunlight, rain, dust, and flying debris. It is particularly useful for outdoor construction and field work.

Are full brim hard hats good for outdoor work?

Yes. Full brim hard hats are well suited to outdoor construction, engineering, surveying, infrastructure, and other field applications where broader weather coverage is beneficial.

Does the SNHL9 have adjustable ventilation?

Yes. The SNHL9 features adjustable top ventilation openings that can be opened or closed according to working conditions.

What does Class C mean on a hard hat?

Class C means Conductive. Class C hard hats are intended for general industrial applications and are not designed to provide electrical insulation.

What head size does the SNHL9 fit?

The SNHL9 fits head sizes from 52 to 63 cm and uses a ratchet adjustment system for precise fit adjustment.

Does the SNHL9 support a headlamp?

No. The SNHL9 does not include headlamp clips. Its side accessory slots are designed for compatible helmet-mounted PPE accessories such as suitable ear muffs.

Can the SNHL9 be customized?

Yes. The SNHL9 supports custom logo printing, custom colors, and OEM packaging for qualifying orders. It is available for bulk purchasing, OEM, and private-label projects.

Does the SNHL9 have a minimum order quantity?

No. The SNHL9 has no MOQ requirement. Customers can order samples or discuss bulk purchasing and OEM requirements directly with our sales team.
